LoRa/FSK Transceiver Module, 915MHz, RFM97CW (COM-18084)

(No reviews yet) Write a Review
SKU:
PPCOM-18084

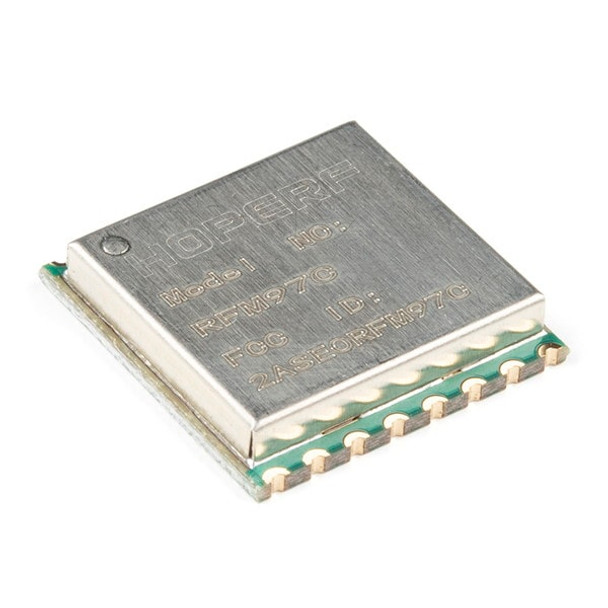

  • LoRa/FSK Transceiver Module, 915MHz, RFM97CW - Sparkfun COM-18084 main
  • LoRa/FSK Transceiver Module, 915MHz, RFM97CW - Sparkfun COM-18084
  • LoRa/FSK Transceiver Module, 915MHz, RFM97CW - Sparkfun COM-18084 rear
£10.50

Description

LoRa/FSK Transceiver Module, 915MHz, RFM97CW - Sparkfun COM-18084

RFM97CW Sub-GHz radio transceivers are ideal for long-range wireless applications. With high integration, the RFM97CW simplifies the peripheral materials needed in system design. The sensitivity up to - 138dbm that optimizes link performance for applications. In addition, the RFM97CW also supports the function of duty cycle operation mode, channel listening, high-precision RSSI, power-on reset, squelch output, etc., which makes the application design more flexible and realizes product differentiation design.
The working voltage of RFM97CW is from 1.8V to 3.7V. When the sensitivity of - 138dbm is reached, only a 9.9mA current is consumed, and the ultra-low power consumption receiving mode can further reduce the receiving power consumption of the chip.

Features:

  • Working Frequency: 915MHz
  • Modulation and Demodulation Mode: LoRa
  • Data Rate: 0.018~37.5 kbps
  • Sensitivity: -138dBm, BW=125KHz, SF=12
  • Voltage Range: 1.8 ~3.7 V
  • Receiving Current: 12.5 mA @ BW=125KHz
  • Support ultra-low power consumption receiving mode
  • Sleeping Current:
    • 160 nA, DutyCycle = OFF
    • 600 nA, DutyCycle = ON
    • 4-wire SPI Interface
  • Support fully automatic independent working mode

Documents:

View AllClose

Additional Information

Brand:
SparkFun
Part Number:
COM-18084
Barcode:
5055421003746
