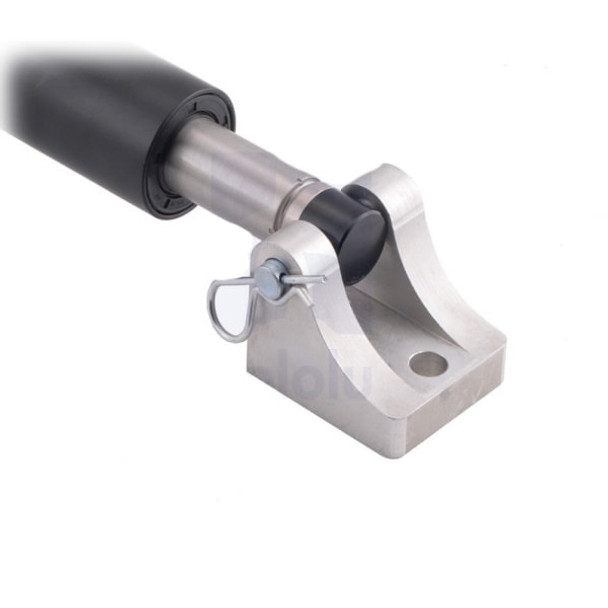

This mounting bracket was designed specifically for the Glideforce Industrial-Duty (ID) linear actuators. It is machined out of a single piece of aluminum and has been tested to 1700 kgf [3800 lbs or 17,000 N] of static load, which is well above the highest static loads the ID actuators are rated for. The mounting pin has a 0.498″ (12.6 mm) diameter. This bracket is sold individually, and two brackets are required for each linear actuator.
Mounting bracket Dimensions
- Datasheet for the aluminum mounting bracket for Glideforce industrial-duty linear actuators (375k pdf)
